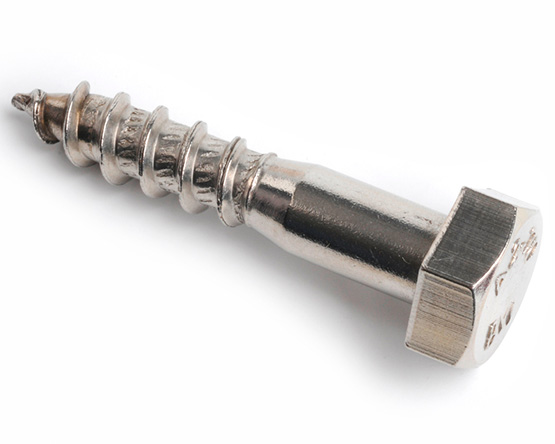

10 X 130 LAG SCREW DIN 571 AISI 304
£140.37 (exc VAT) per 100
Part No. A57110130
£140.37 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £140.37 |
| 100 + | £133.35 |
| 200 + | £126.68 |
| 500 + | £120.37 |
| 1000 + | £112.93 |
This product must be ordered in multiples of 50, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | s | k | ds | b (min) |
|---|---|---|---|---|
| 4 | 7.00-6.64 | 3.10-2.50 | 4.00-3.52 | 0.6 x L |
| 5 | 8.00-7.64 | 3.88-3.13 | 5.00-4.52 | 0.6 x L |
| 6 | 10.00-9.64 | 4.38-3.63 | 6.00-5.52 | 0.6 x L |
| 7 | 12.00-11.57 | 5.38-4.63 | 7.00-6.42 | 0.6 x L |
| 8 | 13.00-12.57 | 5.88-5.13 | 8.00-7.42 | 0.6 x L |
| 10 | 17.00-16.57 | 7.45-6.55 | 10.00-9.42 | 0.6 x L |
| 12 | 19.00-18.48 | 8.45-7.55 | 12.00-11.30 | 0.6 x L |
| 16 | 24.00-23.16 | 10.45-9.55 | 16.00-15.30 | 0.6 x L |
