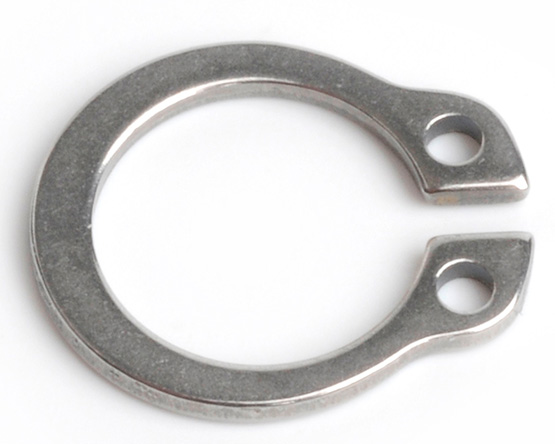

5mm EXTERNAL RETAINING RING FOR SHAFT DIN 471 1.4532

Name: 5mm EXTERNAL RETAINING RING FOR SHAFT DIN 471 1.4532
SKU: A47105A4
Price: 94.68 GBP
Availability: OutOfStock

£94.68 (exc VAT) per 100

Part No. A47105A4

£94.68 (exc VAT) per 100

SHOP FOR MORE EXTERNAL RETAINING RINGS FOR SHAFTS DIN 471

Shaft Diameter (d1)	d5 MIN	d3	a (max)	b	d4
5	1	4.7	2.5	1.1	10.3
6	1.2	5.6	2.7	1.3	11.7
7	1.2	6.5	3.1	1.4	13.5
8	1.2	7.4	3.2	1.5	14.7
9	1.2	8.4	3.3	1.7	16.0
10	1.5	9.3	3.3	1.8	17.0
11	1.5	10.2	3.3	1.8	18.0
12	1.7	11.0	3.3	1.8	19.0
13	1.7	11.9	3.4	1.9	20.2
14	1.7	12.9	3.5	2.1	21.4
15	1.7	13.8	3.6	2.2	22.6
16	1.7	14.7	3.7	2.2	23.8
17	1.7	15.7	3.8	2.3	25.0
18	2	16.5	3.9	2.5	26.2
19	2	17.5	3.9	2.5	27.2
20	2	18.5	4.0	2.6	28.4
21	2	19.5	4.1	2.7	29.6
22	2	20.5	4.2	2.8	30.8
23	2	21.4	4.3	2.9	*
24	2	22.2	4.4	3.0	33.2
25	2	23.2	4.4	3.0	34.2
26	2	24.2	4.4	3.1	35.5
27	2	25.1	4.6	3.1	*
28	2	25.9	4.7	3.2	37.9
29	2	26.9	4.8	3.4	39.1
30	2	27.9	5.0	3.5	40.5
32	2.5	29.6	5.2	3.6	43.0
34	2.5	31.5	5.4	3.8	45.4
35	2.5	32.2	5.6	3.9	46.8
36	2.5	33.2	5.6	4.0	47.8
37	2.5	34.2	5.7	4.1	*
38	2.5	35.2	5.8	4.2	50.2
40	2.5	36.5	6	4.4	52.6
