Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOG

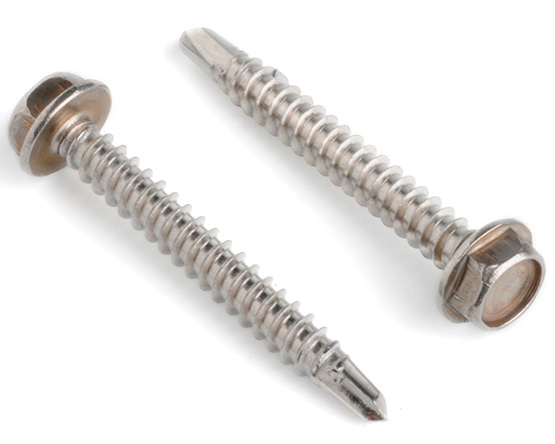

3.5 X 16 HEX HEAD SELF DRILLING SHEET METAL SCREW DIN 7504K AISI 304
£7.26 (exc VAT) per 100
Part No. A7504K3516
£7.26 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 1000 + | £7.26 |
| 2000 + | £6.90 |
| 4000 + | £6.55 |
| 10000 + | £6.23 |
| 20000 + | £5.84 |
This product must be ordered in multiples of 1000, quantities will be rounded up as you add them.
Further Information
| Metric (d) | dc | k | c (min) | a (max) | dp (max) | s |
|---|---|---|---|---|---|---|
| 3.5 (#6) | 8.30-7.60 | 3.40-3.00 | 0.60 | 2.25 | 2.80 | SW5.5 |
| 3.9 (#7) | 8.30-7.60 | 3.40-3.00 | 0.60 | 2.40 | 3.10 | SW5.5 |
| 4.2 (#8) | 8.80-8.10 | 4.10-3.60 | 0.80 | 3.00 | 3.60 | SW7 |
| 4.8 (#10) | 10.50-9.80 | 4.30-3.80 | 0.90 | 4.40 | 4.10 | SW8 |
| 5.5 (#12) | 11.00-10.00 | 5.40-4.80 | 1.00 | 5.25 | 4.80 | SW8 |
| 6.3 (#14) | 13.50-12.20 | 5.90-5.30 | 1.00 | 6.00 | 5.80 | SW10 |
