Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOG

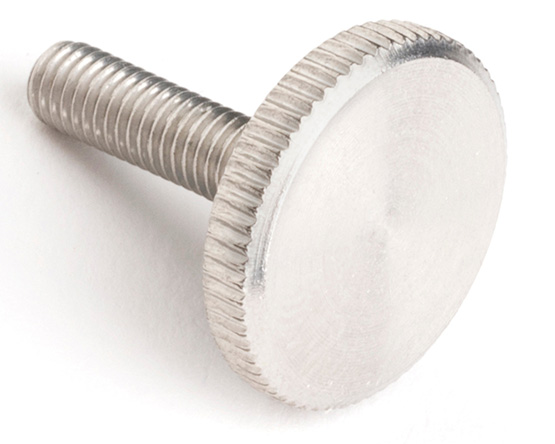

M4 X 8 KNURLED HEAD THUMB SCREW DIN 653 AISI 303
£152.30 (exc VAT) per 100
Part No. A6530408
£152.30 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £152.30 |
| 100 + | £144.69 |
| 200 + | £137.45 |
| 500 + | £130.60 |
| 1000 + | £122.53 |
This product must be ordered in multiples of 50, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | dk | k | ds | e | r |
|---|---|---|---|---|---|---|
| M2 | 0.40 | 9.29-8.71 | 2.00-1.75 | 2.00-1.86 | 1.5 | 0.5 |
| M2.5 | 0.45 | 11.35-10.65 | 2.50-2.25 | 2.50-2.36 | 2.0 | 0.5 |
| M3 | 0.50 | 12.35-11.65 | 2.50-2.25 | 3.00-2.86 | 2.0 | 0.5 |
| M3.5 | 0.60 | 14.35-13.65 | 3.00-2.75 | 3.50-3.32 | 2.5 | 0.5 |
| M4 | 0.70 | 16.35-15.65 | 3.50-3.20 | 4.00-3.82 | 3.0 | 0.5 |
| M5 | 0.80 | 20.42-19.58 | 4.00-3.70 | 5.00-4.82 | 3.0 | 1 |
| M6 | 1.00 | 24.42-23.58 | 5.00-4.70 | 6.00-5.82 | 4.0 | 1 |
| M8 | 1.25 | 30.42-29.58 | 6.00-5.70 | 8.00-7.78 | 5.0 | 2 |
| M10 | 1.50 | 36.50-35.60 | 8.00-7.64 | 10.00-9.78 | 6.0 | 2 |
