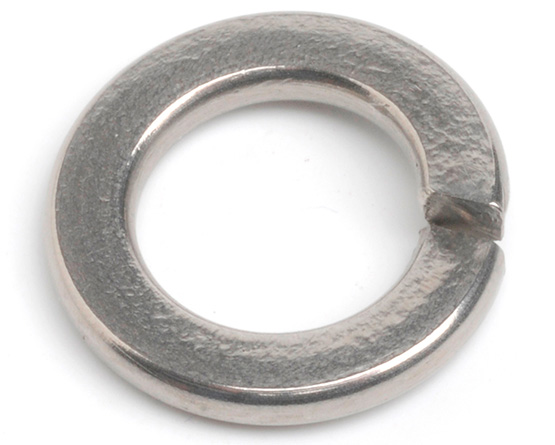

1.1/4" MEDIUM SPLIT LOCK WASHER ASME B18.21.1 AISI 316

£422.96 (exc VAT) per 100

Part No. U127114A4

£422.96 (exc VAT) per 100

This product must be ordered in multiples of 5, quantities will be rounded up as you add them.

SHOP FOR MORE MEDIUM SPLIT LOCK WASHERS ASME B18.21.1

Size	a (min)	b (max)	ti + to / 2 (min)	w (min)
#2	0.088	0.172	0.020	0.035
#3	0.101	0.195	0.025	0.040
#4	0.114	0.209	0.025	0.040
#5	0.127	0.236	0.031	0.047
#6	0.141	0.250	0.031	0.047
#8	0.167	0.293	0.040	0.055
#10	0.193	0.334	0.047	0.062
#12	0.220	0.377	0.056	0.070
1/4	0.252	0.487	0.062	0.109
5/16	0.314	0.583	0.078	0.125
3/8	0.377	0.680	0.094	0.141
7/16	0.440	0.776	0.109	0.156
1/2	0.502	0.869	0.125	0.171
