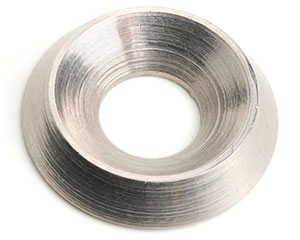

9.0 (M8) SOLID METAL COUNTERSUNK WASHER (NFE 27-619) AISI 316
Part No. ACUPM8A4
£126.26 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £126.26 |
| 200 + | £119.95 |
| 400 + | £113.95 |
| 1000 + | £108.27 |
| 2000 + | £101.58 |
A minimum order quantity of 100 applies to this productThis product must be ordered in multiples of 100, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | a | b | c | d |
|---|---|---|---|---|
| M3 | 3.80-3.50 | 9.30-9.00 | 6.80-6.50 | 2.20-1.80 |
| M4 | 4.80-4.50 | 11.30-11.00 | 8.30-8.00 | 2.60-2.40 |
| M5 | 5.80-5.50 | 14.70-14.00 | 10.30-10.00 | 3.20-2.80 |
| M6 | 7.30-7.00 | 16.30-16.00 | 12.30-12.00 | 3.70-3.30 |
| M8 | 9.30-9.00 | 22.30-22.00 | 16.30-16.00 | 4.70-4.30 |
| M10 | 11.30-11.00 | 28.30-28.00 | 20.30-20.00 | 5.70-5.30 |
| M12 | 14.30-14.00 | 32.30-32.00 | 24.30-24.00 | 6.70-6.30 |
