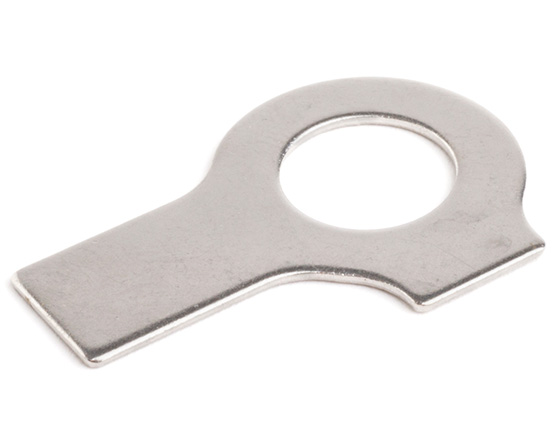

10.5 (M10) TAB LOCK WASHER WITH LONG TAB AND WING DIN 463 AISI 304
£13.95 (exc VAT) per 100
Part No. A46310
£13.95 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £13.95 |
| 200 + | £13.25 |
| 400 + | £12.59 |
| 1000 + | £11.96 |
| 2000 + | £11.22 |
This product must be ordered in multiples of 100, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 | b | d2 | L1 | L2 | r | s |
|---|---|---|---|---|---|---|---|
| M4 | 4.3 | 5 | 9 | 14 | 6.5 | 2.5 | 0.38 |
| M5 | 5.3 | 6 | 10 | 16 | 8 | 2.5 | 0.50 |
| M6 | 6.4 | 7 | 12.5 | 18 | 9 | 4 | 0.50 |
| M8 | 8.4 | 8 | 17 | 20 | 11 | 4 | 0.75 |
| M10 | 10.5 | 10 | 21 | 22 | 13 | 4 | 0.75 |
| M12 | 13 | 12 | 24 | 28 | 15 | 6 | 1.00 |
| M14 | 15 | 12 | 28 | 28 | 16 | 6 | 1.00 |
| M16 | 17 | 15 | 30 | 32 | 18 | 6 | 1.00 |
| M18 | 19 | 18 | 34 | 36 | 20 | 6 | 1.00 |
| M20 | 21 | 18 | 37 | 36 | 21 | 6 | 1.00 |
| M22 | 23 | 20 | 39 | 42 | 23 | 6 | 1.00 |
| M24 | 25 | 20 | 44 | 42 | 25 | 6 | 1.00 |
| M27 | 28 | 23 | 50 | 48 | 29 | 6 | 1.60 |
| M30 | 31 | 26 | 56 | 52 | 32 | 10 | 1.60 |
| M33 | 34 | 28 | 60 | 56 | 34 | 10 | 1.60 |
| M36 | 37 | 30 | 66 | 60 | 38 | 10 | 1.60 |
| M39 | 40 | 32 | 72 | 64 | 41 | 10 | 1.60 |
