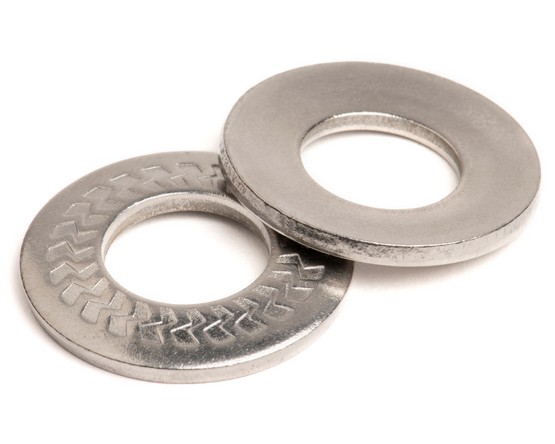

12.83 (M12) Z-TYPE SERRATED CONCIAL BELLEVILLE WASHER M-TYPE AISI 304
£25.82 (exc VAT) per 100
Part No. A921712
£25.82 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £25.82 |
| 1000 + | £24.53 |
| 2000 + | £23.30 |
| 5000 + | £22.14 |
| 10000 + | £20.77 |
This product must be ordered in multiples of 500, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 | d2 | s | h |
|---|---|---|---|---|
| M4 | 4.40 | 10.20 | 1.05 | 1.50 |
| M5 | 5.40 | 12.20 | 1.24 | 1.90 |
| M6 | 6.40 | 14.20 | 1.44 | 2.20 |
| M8 | 8.56 | 18.20 | 1.44 | 2.40 |
| M10 | 10.56 | 22.25 | 1.65 | 2.75 |
| M12 | 12.83 | 27.25 | 1.85 | 3.10 |
| M14 | 14.83 | 30.25 | 2.46 | 3.70 |
| M16 | 16.83 | 32.50 | 2.56 | 3.95 |
| M20 | 21.75 | 40.00 | 3.06 | 4.70 |
